Scaffold is a composable component that makes designing some of the basic UI extremely easy. It follows material design principle and provides slots to fill in with components like top bar, bottom bar, navigation drawer, FAB etc. It’s like a template that can be modified based on the requirement.

In the previous post I talked about navigation using navigation drawer. This did not use a scaffold. In this post I’ll show navigation using bottom navigation (and navigation drawer) created using a scaffold. Most of the things will be pretty similar to what we saw in the previous post.

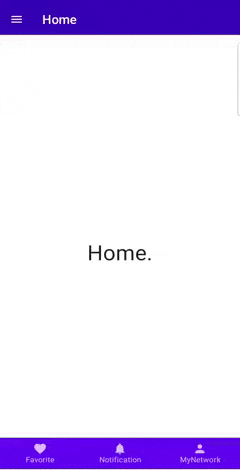

Here’s what we are trying to achieve for this post:

The app launches with a default homescreen. The home screen has three screens that it can navigate to from the bottom navigation. The drawer also has three screens to navigate; Home (default screen on launch), Account and Help. The bottom navigation is available for home screen only.

Screens

The screens are divided in to two categories, HomeScreens (navigable from bottom nav) and DrawerScreens (navigable from drawer).

Each screen is just a simple composable with a text:

ViewModel

To keep a track of the screen we are in, we’ll use a view model.

Bottom Navigation

The BottomNavigation code looks like this. Pretty much same as what we had for navigation from drawer. Here we are using the backStackEntry to mark the selected screen.

Scaffold

Lets checkout the scaffold code:

The Scaffold composable takes various UI components as parameters. For our use case we are passing in the topBar, bottomBar and a drawer.
Our top bar is different in help screen. It has a back button, so our top bar changes based on the screen. Also, the bottom bar is present only for Home and the 3 home screens. Hence, both of these are set conditionally.
We pass NavigationHost composable as a content to the Scaffold. This means that our screens will be contained within the components of the scaffold, in our case, between the top and the bottom bar. It is for this reason that the individual screens do not have a top bar present.

Navigation Host

The Navigation host has all the screens added to the graph that we need.

We’ll use the AppScaffold composable in the activity.

And this is all we need to use scaffold for holding our various UI components and managing navigation across various screens.

A point to note here is that we have not used any animation while navigating and that is because animation is still being worked upon in compose navigation.

Additional Readings

Handling back press

In the above and the previous post, you will notice that (when you run the app) when the drawer is open, it does not closes on press of device back button.

To handle this, we’ll intercept the backpress and close the drawer if it’s open.
We’ll add this below code at the beginning of our AppScaffold composable:

The BackPressHandler is as below:

This handler adds a callback to the back press dispatcher which is obtained from CompositionLocal. A CompositionLocal is a way of passing data between compositions. Read more about CompositionLocal here:
https://medium.com/mobile-app-development-publication/android-jetpack-compose-compositionlocal-made-easy-8632b201bfcd
https://developer.android.com/reference/kotlin/androidx/compose/runtime/CompositionLocal

The callback to handle back press is registered and unregistered using a DisposableEffect. A DisposableEffect is a side effect which is used when a cleanup is required when the Key of the effect changes or the composable leaves the composition. Read more here:
https://developer.android.com/jetpack/compose/lifecycle#disposableeffect

Read more about side effects here:
https://developer.android.com/jetpack/compose/lifecycle
https://jorgecastillo.dev/jetpack-compose-effect-handlers

To provide the backpress dispatcher to the composables we need to wrap it with CompositionLocalProvider. Since we need it at scaffold itself, we wrap our AppScaffold with it. This will provide the dispatcher to AppScaffold and all the other composables under this tree.

The above code for the backpress handler is taken from this Compose sample:
JetChat

Handling State Across Screens

While state in a particular screen/composable can be retained across re-composition by using remember, the same is lost when the screen/composable navigates to a different composable and leaves the composition. Eg:

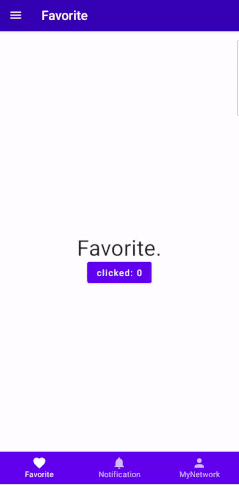

Here, I have added a button in the favorite screen. On click, the text in the button updates and shows number of times it has been clicked. This is achieved by using rememberSaveable (same as remember but retains sate on reconfiguration of screen when device is rotated), which remembers the click value every time the button composable is recomposed and updates it to the new value. But the value is reset when you navigate to a different screen and come back.

To retain a state across different screen/composable we can use a ViewModel. The viewmodel is bound to the lifecycle of the activity and the same is passed to each composable. We use the view model to retain the state of the button click count.

The composable for Favorite screen now looks like this:

Here we observe the clickCount livedata as a state from the viewmodel and use a local variable click to update the count. And now our state for click count is retained even when the screen changes.

And that’s all I have for this post. Thanks for reading.

Checkout the code on GitHub:
NavigationAndScaffold
