❤️‍大家好,我是Gauss松鼠会,欢迎进来学习啦~❤️‍

在前面介绍过“9.1 安全管理整体架构和代码概览、9.2 安全认证”,本篇我们介绍第9章 安全管理源码解析中“9.3 角色管理”的相关精彩内容介绍。

9.3 角色管理

角色是拥有数据库对象和权限的实体,在不同的环境中角色可以认为是一个用户、一个组或者兼顾两者。角色管理包含了角色的创建、修改、删除、权限授予和回收操作。

9.3.1 角色创建

如果在openGauss上需要创建一个角色,可以使用SQL命令CREATE ROLE,其语法为:

CREATE ROLE role_name [ [ WITH ] option [ ... ] ] [ ENCRYPTED | UNENCRYPTED ] { PASSWORD | IDENTIFIED BY } { 'password' | DISABLE };

创建角色是通过函数CreateRole实现的,其函数接口为:

void CreateRole(CreateRoleStmt* stmt)

其中,CreateRoleStmt为创建角色时所需的数据结构,具体数据结构代码如下:

typedef struct CreateRoleStmt {
    NodeTag type;
    RoleStmtType stmt_type;  /* 将要创建的角色类型 ROLE/USER/GROUP  */
    char* role;              /* 角色名 */
    List* options;            /* 角色属性列表 */
} CreateRoleStmt;

字段stmt_type是枚举类型,相关代码如下:

typedef enum RoleStmtType {
ROLESTMT_ROLE,    /* 代表创建角色 */
ROLESTMT_USER,    /* 代表创建用户 */
ROLESTMT_GROUP,  /* 代表创建组用户 */
} RoleStmtType;

字段option用来存储角色的属性信息,具体的数据结构为:

typedef struct DefElem {
    NodeTag type;
    char* defnamespace;     /* 节点对应的命名空间  */
    char* defname;          /* 节点对应的角色属性名  */
    Node* arg;              /* 表示值或类型名  */
    DefElemAction defaction;  /* SET/ADD/DROP 等其他未指定的行为  */
} DefElem;

在上述的关键数据结构基础之上,完整的创建角色流程如图9-14所示。
在这里插入图片描述

图9-14 openGauss角色创建流程

创建角色时先判断所要创建的角色类型。如果是创建用户,则设置其canlogin属性为true,因为用户默认具有登录权限。而创建角色和创建组时,若角色属性参数没有声明的话,则canlogin属性默认为false。相关代码如下:

/* 默认值可能因原始语句类型而异 */
switch (stmt->stmt_type) {
case ROLESTMT_ROLE:
        break;
    case ROLESTMT_USER:
         canlogin = true;
         break;
     case ROLESTMT_GROUP:
         break;
     default:
         break;
}

检查完所要创建的角色类型以后,开始循环获取角色属性options中的内容,并将其转换成对应的角色属性值类型。相关代码如下:

/* 从node tree中获取option */
foreach (option, stmt->options) {
    DefElem* defel = (DefElem*)lfirst(option);

    if (strcmp(defel->defname, "password") == 0 || strcmp(defel->defname, "encryptedPassword") == 0 ||
        strcmp(defel->defname, "unencryptedPassword") == 0) {
        if (dpassword != NULL) {
            clean_role_password(dpassword);
            ereport(ERROR, (errcode(ERRCODE_SYNTAX_ERROR), errmsg("conflicting or redundant options")));
        }
        dpassword = defel;
        if (strcmp(defel->defname, "encryptedPassword") == 0)
            encrypt_password = true;
        else if (strcmp(defel->defname, "unencryptedPassword") == 0) {
            clean_role_password(dpassword);
            ereport(ERROR,
                (errcode(ERRCODE_INSUFFICIENT_PRIVILEGE),
                    errmsg("Permission denied to create role with option UNENCRYPTED.")));
        }
    } else if (strcmp(defel->defname, "sysid") == 0) {
        ereport(NOTICE, (errmsg("SYSID can no longer be specified")));
    } else if (strcmp(defel->defname, "inherit") == 0) {
        if (dinherit != NULL) {
            clean_role_password(dpassword);
            ereport(ERROR, (errcode(ERRCODE_SYNTAX_ERROR), errmsg("conflicting or redundant options")));
        }
        dinherit = defel;
    } else if (strcmp(defel->defname, "createrole") == 0) {
        if (dcreaterole != NULL) {
            clean_role_password(dpassword);
            ereport(ERROR, (errcode(ERRCODE_SYNTAX_ERROR), errmsg("conflicting or redundant options")));
        }
        dcreaterole = defel;
    } else if (strcmp(defel->defname, "createdb") == 0) {
        if (dcreatedb != NULL) {
            clean_role_password(dpassword);
            ereport(ERROR, (errcode(ERRCODE_SYNTAX_ERROR), errmsg("conflicting or redundant options")));
        }
        dcreatedb = defel;
    } else if (strcmp(defel->defname, "useft") == 0) {
        if (duseft != NULL) {
            clean_role_password(dpassword);
            ereport(ERROR, (errcode(ERRCODE_SYNTAX_ERROR), errmsg("conflicting or redundant options")));
        }
        duseft = defel;
……

根据对应的参数信息转换需要的角色属性值类型,如提取issuper值和createrole值等。相关代码如下:

  if (dissuper != NULL)
        issuper = intVal(dissuper->arg) != 0;
    if (dinherit != NULL)
        inherit = intVal(dinherit->arg) != 0;
    if (dcreaterole != NULL)
        createrole = intVal(dcreaterole->arg) != 0;
    if (dcreatedb != NULL)
        createdb = intVal(dcreatedb->arg) != 0;
   ……

在完成了转换以后,将角色属性值以及角色的信息一起构建一个pg_authid的元组,再写回系统表并更新索引。作相关代码如下:

/* 检查pg_authid relation,确认该角色没有存在*/
Relation pg_authid_rel = heap_open(AuthIdRelationId, RowExclusiveLock);
    TupleDesc pg_authid_dsc = RelationGetDescr(pg_authid_rel);

    if (OidIsValid(get_role_oid(stmt->role, true))) {
        str_reset(password);
        ereport(ERROR, (errcode(ERRCODE_DUPLICATE_OBJECT), errmsg("role \"%s\" already exists", stmt->role)));
}
……
    /* 创建一个插入的tuple */
    errno_t errorno = memset_s(new_record, sizeof(new_record), 0, sizeof(new_record));
    securec_check(errorno, "\0", "\0");
    errorno = memset_s(new_record_nulls, sizeof(new_record_nulls), false, sizeof(new_record_nulls));
    securec_check(errorno, "\0", "\0");

    new_record[Anum_pg_authid_rolname - 1] = DirectFunctionCall1(namein, CStringGetDatum(stmt->role));

    new_record[Anum_pg_authid_rolsuper - 1] = BoolGetDatum(issuper);
    new_record[Anum_pg_authid_rolinherit - 1] = BoolGetDatum(inherit);
    new_record[Anum_pg_authid_rolcreaterole - 1] = BoolGetDatum(createrole);
    new_record[Anum_pg_authid_rolcreatedb - 1] = BoolGetDatum(createdb);

    new_record[Anum_pg_authid_rolcatupdate - 1] = BoolGetDatum(issuper);
    new_record[Anum_pg_authid_rolcanlogin - 1] = BoolGetDatum(canlogin);
    new_record[Anum_pg_authid_rolreplication - 1] = BoolGetDatum(isreplication);
    new_record[Anum_pg_authid_rolauditadmin - 1] = BoolGetDatum(isauditadmin);
    new_record[Anum_pg_authid_rolsystemadmin - 1] = BoolGetDatum(issystemadmin);
new_record[Anum_pg_authid_rolconnlimit - 1] = Int32GetDatum(connlimit);
……
    HeapTuple tuple = heap_form_tuple(pg_authid_dsc, new_record, new_record_nulls);

    if (u_sess->proc_cxt.IsBinaryUpgrade && OidIsValid(u_sess->upg_cxt.binary_upgrade_next_pg_authid_oid)) {
        HeapTupleSetOid(tuple, u_sess->upg_cxt.binary_upgrade_next_pg_authid_oid);
        u_sess->upg_cxt.binary_upgrade_next_pg_authid_oid = InvalidOid;
    }

    roleid = simple_heap_insert(pg_authid_rel, tuple);

    if (IsUnderPostmaster) {
        if (OidIsValid(rpoid) && (rpoid != DEFAULT_POOL_OID))
            recordDependencyOnRespool(AuthIdRelationId, roleid, rpoid);

        u_sess->wlm_cxt->wlmcatalog_update_user = true;
}
……

完成更新以后,将新创建的角色加入指定存在的父角色中。相关代码如下:

  /* 将新角色添加到指定的现有角色中 */
    foreach (item, addroleto) {
        char* oldrolename = strVal(lfirst(item));
        Oid oldroleid = get_role_oid(oldrolename, false);

        AddRoleMems(
            oldrolename, oldroleid, list_make1(makeString(stmt->role)), list_make1_oid(roleid), GetUserId(), false);
    }

    AddRoleMems(stmt->role, roleid, adminmembers, roleNamesToIds(adminmembers), GetUserId(), true);
    AddRoleMems(stmt->role, roleid, rolemembers, roleNamesToIds(rolemembers), GetUserId(), false);

至此就完成了整个角色创建的过程。

9.3.2 角色管理

1. 修改角色属性

修改一个数据库角色可以使用SQL命令ALTER ROLE。角色属性的修改是通过调用AlterRole函数来实现的,该函数只有一个类型为AlterRoleStmt结构的参数。相关代码如下:

typedef struct AlterRoleStmt {
    NodeTag  type;
    char*  role; /* 角色的名称 */
    List*  options; /* 需要修改的属性列表 */
    int  action;  /* +1增加成员关系, -1删除成员关系 */
    RoleLockType  lockstatus; /* 角色锁定状态 */
} AlterRoleStmt;

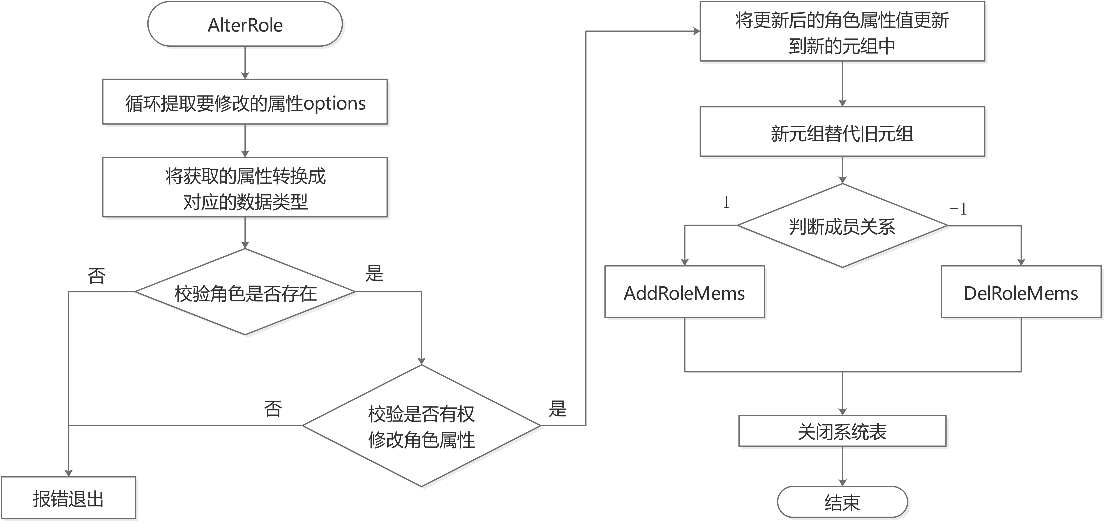

修改角色的流程如图9-15所示。
在这里插入图片描述

图9-15 openGauss角色管理流程图

调用函数AlterRole修改用户角色属性时,首先循环判断options,依次提取要修改的角色属性;然后查看系统表pg_authid判断是否已存在该角色,如果不存在则提示报错;再进行相应的权限判断,检查执行者是否有权限去更改该角色的属性;最后构建一个新的元组,将要更改的属性更新到新元组中,存入系统表pg_authid。同时AlterRole函数也可以用来调整角色的成员关系,结构体中的action字段值设置为1和-1分别表示增加和删除成员关系,该选项将在授予和回收角色章节具体描述。AlterRole函数的具体实现代码如下:

void AlterRole(AlterRoleStmt* stmt)
{
    . . .
    /* 循环提取角色的属性options */
    foreach (option, stmt->options) {
        DefElem* defel = (DefElem*)lfirst(option);

        if (strcmp(defel->defname, "password") == 0 || strcmp(defel->defname, "encryptedPassword") == 0 ||
            strcmp(defel->defname, "unencryptedPassword") == 0) {
            if (dpassword != NULL) {
                clean_role_password(dpassword);
                ereport(ERROR, (errcode(ERRCODE_SYNTAX_ERROR), errmsg("conflicting or redundant options")));
            }
            dpassword = defel;
            if (strcmp(defel->defname, "encryptedPassword") == 0)
                encrypt_password = true;
            else if (strcmp(defel->defname, "unencryptedPassword") == 0) {
                clean_role_password(dpassword);
                ereport(ERROR,
                    (errcode(ERRCODE_INVALID_ROLE_SPECIFICATION),
                        errmsg("Permission denied to create role with option UNENCRYPTED.")));
            }
        } else if (strcmp(defel->defname, "createrole") == 0) {
            if (dcreaterole != NULL) {
                clean_role_password(dpassword);
                ereport(ERROR, (errcode(ERRCODE_SYNTAX_ERROR), errmsg("conflicting or redundant options")));
            }
            dcreaterole = defel;
        } else if (strcmp(defel->defname, "inherit") == 0) {
            if (dinherit != NULL) {
                clean_role_password(dpassword);
                ereport(ERROR, (errcode(ERRCODE_SYNTAX_ERROR), errmsg("conflicting or redundant options")));
            }
            dinherit = defel;
        }
. . .
        else {
            clean_role_password(dpassword);
            ereport(ERROR,
                (errcode(ERRCODE_UNRECOGNIZED_NODE_TYPE), errmsg("option \"%s\" not recognized", defel->defname)));
        }
    }
/* 将提取的属性赋值给对应的变量 */
    if (dpassword != NULL && dpassword->arg != NULL) {
        head = list_head((List*)dpassword->arg);
        if (head != NULL) {
            pwdargs = (A_Const*)linitial((List*)dpassword->arg);
            if (pwdargs != NULL) {
                password = strVal(&pwdargs->val);
            }
            if (lnext(head)) {
                pwdargs = (A_Const*)lsecond((List*)dpassword->arg);
                if (pwdargs != NULL) {
                    replPasswd = strVal(&pwdargs->val);
                }
            }
        }
    }
    if (dinherit != NULL)
        inherit = intVal(dinherit->arg);
    if (dcreaterole != NULL)
        createrole = intVal(dcreaterole->arg);
 . . .
    /* 查看要修改的角色是否存在,不存在则提示报错 */
    Relation pg_authid_rel = heap_open(AuthIdRelationId, RowExclusiveLock);

    HeapTuple tuple = SearchSysCache1(AUTHNAME, PointerGetDatum(stmt->role));
    if (!HeapTupleIsValid(tuple)) {
        str_reset(password);
        str_reset(replPasswd);

        if (!have_createrole_privilege())
            ereport(ERROR, (errcode(ERRCODE_INSUFFICIENT_PRIVILEGE), errmsg("Permission denied.")));
        else
            ereport(ERROR, (errcode(ERRCODE_UNDEFINED_OBJECT), errmsg("role \"%s\" does not exist", stmt->role)));
    }
roleid = HeapTupleGetOid(tuple);
. . .
/* 检查是否有权限更改相应角色的属性,权限不足则提示报错 */
    if (roleid == BOOTSTRAP_SUPERUSERID) {
        if (!(issuper < 0 && inherit < 0 && createrole < 0 && createdb < 0 && canlogin < 0 && isreplication < 0 &&
                isauditadmin < 0 && issystemadmin < 0 && isvcadmin < 0 && useft < 0 && dconnlimit == NULL &&
                rolemembers == NULL && validBegin == NULL && validUntil == NULL && drespool == NULL &&
                dparent == NULL && dnode_group == NULL && dspacelimit == NULL && dtmpspacelimit == NULL &&
                dspillspacelimit == NULL)) {
            str_reset(password);
            str_reset(replPasswd);
            ereport(ERROR,
                (errcode(ERRCODE_INSUFFICIENT_PRIVILEGE),
                    errmsg("Permission denied to change privilege of the initial account.")));
        }
    }
    if (dpassword != NULL && roleid == BOOTSTRAP_SUPERUSERID && GetUserId() != BOOTSTRAP_SUPERUSERID) {
        str_reset(password);
        str_reset(replPasswd);
        ereport(ERROR,
            (errcode(ERRCODE_INSUFFICIENT_PRIVILEGE),
                errmsg("Permission denied to change password of the initial account.")));
    }
    . . .
    } else if (!have_createrole_privilege()) {
        if (!(inherit < 0 && createrole < 0 && createdb < 0 && canlogin < 0 && isreplication < 0 && isauditadmin < 0 &&
                issystemadmin < 0 && isvcadmin < 0 && useft < 0 && dconnlimit == NULL && rolemembers == NULL &&
                validBegin == NULL && validUntil == NULL && !*respool && !OidIsValid(parentid) && dnode_group == NULL &&
                !spacelimit && !tmpspacelimit && !spillspacelimit &&
                /* if not superuser or have createrole privilege, permission of lock and unlock is denied */
                stmt->lockstatus == DO_NOTHING &&
                /* if alter password, it will be handled below */
                roleid == GetUserId()) ||
            (roleid != GetUserId() && dpassword == NULL)) {
            str_reset(password);
            str_reset(replPasswd);
            ereport(ERROR, (errcode(ERRCODE_INSUFFICIENT_PRIVILEGE), errmsg("Permission denied.")));
        }
}
...
    /* 将要更改的角色属性值分别更新到新元组中,再将新元组替代旧元组存入系统表pg_authid中 */
    if (issuper >= 0) {
        new_record[Anum_pg_authid_rolsuper - 1] = BoolGetDatum(issuper > 0);
        new_record_repl[Anum_pg_authid_rolsuper - 1] = true;

        new_record[Anum_pg_authid_rolcatupdate - 1] = BoolGetDatum(issuper > 0);
        new_record_repl[Anum_pg_authid_rolcatupdate - 1] = true;
    }
    if (inherit >= 0) {
        new_record[Anum_pg_authid_rolinherit - 1] = BoolGetDatum(inherit > 0);
        new_record_repl[Anum_pg_authid_rolinherit - 1] = true;
    }
  . . .
    HeapTuple new_tuple = heap_modify_tuple(tuple, pg_authid_dsc, new_record, new_record_nulls, new_record_repl);
    simple_heap_update(pg_authid_rel, &tuple->t_self, new_tuple);

    CatalogUpdateIndexes(pg_authid_rel, new_tuple);
   . . .
/* 判断成员关系,增加或删除成员 */
    if (stmt->action == 1)
        AddRoleMems(stmt->role, roleid, rolemembers, roleNamesToIds(rolemembers), GetUserId(), false);
    else if (stmt->action == -1) /* drop members FROM role */
        DelRoleMems(stmt->role, roleid, rolemembers, roleNamesToIds(rolemembers), false);

    . . .
    heap_close(pg_authid_rel, NoLock);
}

2. 删除角色

如果要删除一个角色,可以使用SQL命令DROP ROLE。角色的删除是通过调用DropRole函数来实现的,该函数只有一个类型为DropRoleStmt结构的参数。相关代码如下:

typedef struct DropRoleStmt {
    NodeTagtype;
    List*roles;               /*  要删除的角色列表  */
    boolmissing_ok;          /*  判断角色是否存在  */
    boolis_user;             /*  要删除的是角色还是用户  */
    boolinherit_from_parent;  /*  是否继承自父角色*/
    DropBehavior behavior;            /*  是否级联删除依赖对象  */
} DropRoleStmt;

删除角色的流程如图9-16所示。
在这里插入图片描述

图9-16 openGauss角色删除流程图

角色删除的执行流程为:首先判断当前操作者是否有权限执行该操作,若没有则报错退出;然后检查待删除的角色是否存在,若不存在,则根据missing_ok选择返回ERROR或NOTICE提示信息;再通过扫描系统表pg_authid和pg_auth_members,删除所有涉及待删除角色的元组执行;若behavior取值DROP_CASCADE,则级联删除该角色所拥有的所有数据库对象;最后删除该角色在系统表pg_auth_history和pg_user_status中对应的信息。具体的实现过程代码如下:

void DropRole(DropRoleStmt* stmt)
{
    . . .
/*  检查执行者是否有权限删除角色  */
    if (!have_createrole_privilege())
        ereport(ERROR, (errcode(ERRCODE_INSUFFICIENT_PRIVILEGE), errmsg("Permission denied to drop role.")));
/*  循环处理要删除的角色  */
    foreach (item, stmt->roles) {
. . .
/*  检查要删除的角色是否存在,若不存在则提示报错  */
        HeapTuple tuple = SearchSysCache1(AUTHNAME, PointerGetDatum(role));
        if (!HeapTupleIsValid(tuple)) {
            if (!stmt->missing_ok) {
                ereport(ERROR, (errcode(ERRCODE_UNDEFINED_OBJECT), errmsg("role \"%s\" does not exist", role)));
            } else {
                ereport(NOTICE, (errmsg("role \"%s\" does not exist, skipping", role)));
            }
            continue;
        }
        . . .
/*  当前用户不允许删除  */
        if (roleid == GetUserId())
            ereport(ERROR, (errcode(ERRCODE_OBJECT_IN_USE), errmsg("current user cannot be dropped")));
        if (roleid == GetOuterUserId())
            ereport(ERROR, (errcode(ERRCODE_OBJECT_IN_USE), errmsg("current user cannot be dropped")));
        if (roleid == GetSessionUserId())
            ereport(ERROR, (errcode(ERRCODE_OBJECT_IN_USE), errmsg("session user cannot be dropped")));
        /*  校验执行者和被删除角色的权限,如系统管理员才有权限删除其他系统管理员  */
        if((((Form_pg_authid)GETSTRUCT(tuple))->rolsuper|| ((Form_pg_authid)GETSTRUCT(tuple))->rolsystemadmin) &&
            !isRelSuperuser())
            ereport(ERROR,(errcode(ERRCODE_INSUFFICIENT_PRIVILEGE), errmsg("Permission denied.")));
        if ((((Form_pg_authid)GETSTRUCT(tuple))->rolauditadmin) &&
            g_instance.attr.attr_security.enablePrivilegesSeparate && !isRelSuperuser())
            ereport(ERROR, (errcode(ERRCODE_INSUFFICIENT_PRIVILEGE), errmsg("Permission denied.")));
        . . .
    /*  针对CASCADE(级联)的情况,删除该角色拥有的对象  */
        if (stmt->behavior == DROP_CASCADE) {
            char* user = NULL;
            CancelQuery(role);
            user = (char*)palloc(sizeof(char) * strlen(role) + 1);
            errno_t errorno = strncpy_s(user, strlen(role) + 1, role, strlen(role));
            securec_check(errorno, "\0", "\0");
            drop_objectstmt.behavior = stmt->behavior;
            drop_objectstmt.type = T_DropOwnedStmt;
            drop_objectstmt.roles = list_make1(makeString(user));

            DropOwnedObjects(&drop_objectstmt);
            list_free_deep(drop_objectstmt.roles);
        }

        /*  检查是否有对象依赖于该角色,若还存在依赖,则提示报错  */
        if (checkSharedDependencies(AuthIdRelationId, roleid, &detail, &detail_log))
            ereport(ERROR,
                (errcode(ERRCODE_DEPENDENT_OBJECTS_STILL_EXIST),
                    errmsg("role \"%s\" cannot be dropped because some objects depend on it", role),
                    errdetail_internal("%s", detail),
                    errdetail_log("%s", detail_log)));
        /*  从相关系统表中删除涉及待删除角色的元组  */
        simple_heap_delete(pg_authid_rel, &tuple->t_self);
. . .
        while (HeapTupleIsValid(tmp_tuple = systable_getnext(sscan))) {
            simple_heap_delete(pg_auth_members_rel, &tmp_tuple->t_self);
        }

        systable_endscan(sscan);
        DropAuthHistory(roleid);
        DropUserStatus(roleid);
        DeleteSharedComments(roleid, AuthIdRelationId);
        DeleteSharedSecurityLabel(roleid, AuthIdRelationId);
        DropSetting(InvalidOid, roleid);
. . .
    heap_close(pg_auth_members_rel, NoLock);
    heap_close(pg_authid_rel, NoLock);
}

3. 授予和回收角色

如果要授予或回收角色的成员关系,可以使用SQL命令“GRANT/REVOKE”。如果声明了“WITH ADMIN OPTION”选项,那么被加入的成员角色还可以将其他角色加入到父角色中。角色的授予或回收通过调用GrantRole函数来实现,该函数只有一个类型为GrantRoleStmt结构的参数。相关代码如下:

typedef struct GrantRoleStmt {
    NodeTag type;
    List* granted_roles;/*  被授予或回收的角色集合  */
    List* grantee_roles;/*  从granted_roles中增加或删除的角色集合  */
    Bool is_grant;/*  true代表授权,false代表回收  */
    Bool admin_opt;/*  是否带有with admin option选项  */
    char* grantor;/*  授权者  */
    Drop Behaviorbehavior;/*  是否级联回收角色  */
} GrantRoleStmt;

授予角色时,grantee_roles中的角色将被添加到granted_roles,通过调用函数AddRoleMems实现;回收角色时,将grantee_roles中的角色从granted_roles中删除,通过调用函数DelRoleMems实现。
函数AddRoleMems的实现流程如图9-17所示。
在这里插入图片描述

图9-17 openGauss增加用户成员流程图

函数AddRoleMems的具体实现代码如下,其中:
(1) rolename和roleid分别表示要被加入成员的角色的名称和OID。
(2) memberNames和memberIds分别是要添加的角色名称和OID的列表。
(3) grantorId表示授权者的OID。
(4) admin_opt表示是否带有with admin option选项。

static void AddRoleMems(
    const char* rolename, Oid roleid, const List* memberNames, List* memberIds, Oid grantorId, bool admin_opt)
{
. . .
    /*  校验执行者的权限  */
    if (superuser_arg(roleid)) {
        if (!isRelSuperuser())
            ereport(ERROR, (errcode(ERRCODE_INSUFFICIENT_PRIVILEGE), errmsg("Permission denied.")));
    . . .
    }
. . .
    if (grantorId != GetUserId() && !superuser())
        ereport(ERROR, (errcode(ERRCODE_INSUFFICIENT_PRIVILEGE), errmsg("must be system admin to set grantor")));
/*  循环处理要添加的角色  */
    pg_authmem_rel = heap_open(AuthMemRelationId, RowExclusiveLock);
    pg_authmem_dsc = RelationGetDescr(pg_authmem_rel);

    forboth(nameitem, memberNames, iditem, memberIds)
    {
        /*  针对角色和成员信息创建pg_auth_members元组,再将新元组插入到系统表中  */
. . .
        new_record[Anum_pg_auth_members_roleid - 1] = ObjectIdGetDatum(roleid);
        new_record[Anum_pg_auth_members_member -1] = ObjectIdGetDatum(memberid);
        new_record[Anum_pg_auth_members_grantor -  1] = ObjectIdGetDatum(grantorId);
        new_record[Anum_pg_auth_members_admin_option - 1] = BoolGetDatum(admin_opt);

        if (HeapTupleIsValid(authmem_tuple)) {
            new_record_repl[Anum_pg_auth_members_grantor - 1] = true;
            new_record_repl[Anum_pg_auth_members_admin_option - 1] = true;
            tuple = heap_modify_tuple(authmem_tuple, pg_authmem_dsc, new_record, new_record_nulls, new_record_repl);
            simple_heap_update(pg_authmem_rel, &tuple->t_self, tuple);
            CatalogUpdateIndexes(pg_authmem_rel, tuple);
            ReleaseSysCache(authmem_tuple);
        } else {
            tuple = heap_form_tuple(pg_authmem_dsc, new_record, new_record_nulls);
            (void)simple_heap_insert(pg_authmem_rel, tuple);
            CatalogUpdateIndexes(pg_authmem_rel, tuple);
        }
    }
. . .
    heap_close(pg_authmem_rel, NoLock);
}

函数DelRoleMems的实现过程类似。首先对执行者的相关权限进行校验,然后循环处理要删除的角色,删除系统表pg_auth_member中相关的元组。

感谢大家学习第9章 安全管理源码解析中“9.3 角色管理”的精彩内容,下一篇我们开启“9.4 对象权限管理”的相关内容的介绍。
敬请期待。

💜走过路过,看到这里了,还请各位小伙伴点赞、收藏、评论,千言万语,不胜感谢💜


About Joyk


Aggregate valuable and interesting links.
Joyk means Joy of geeK
